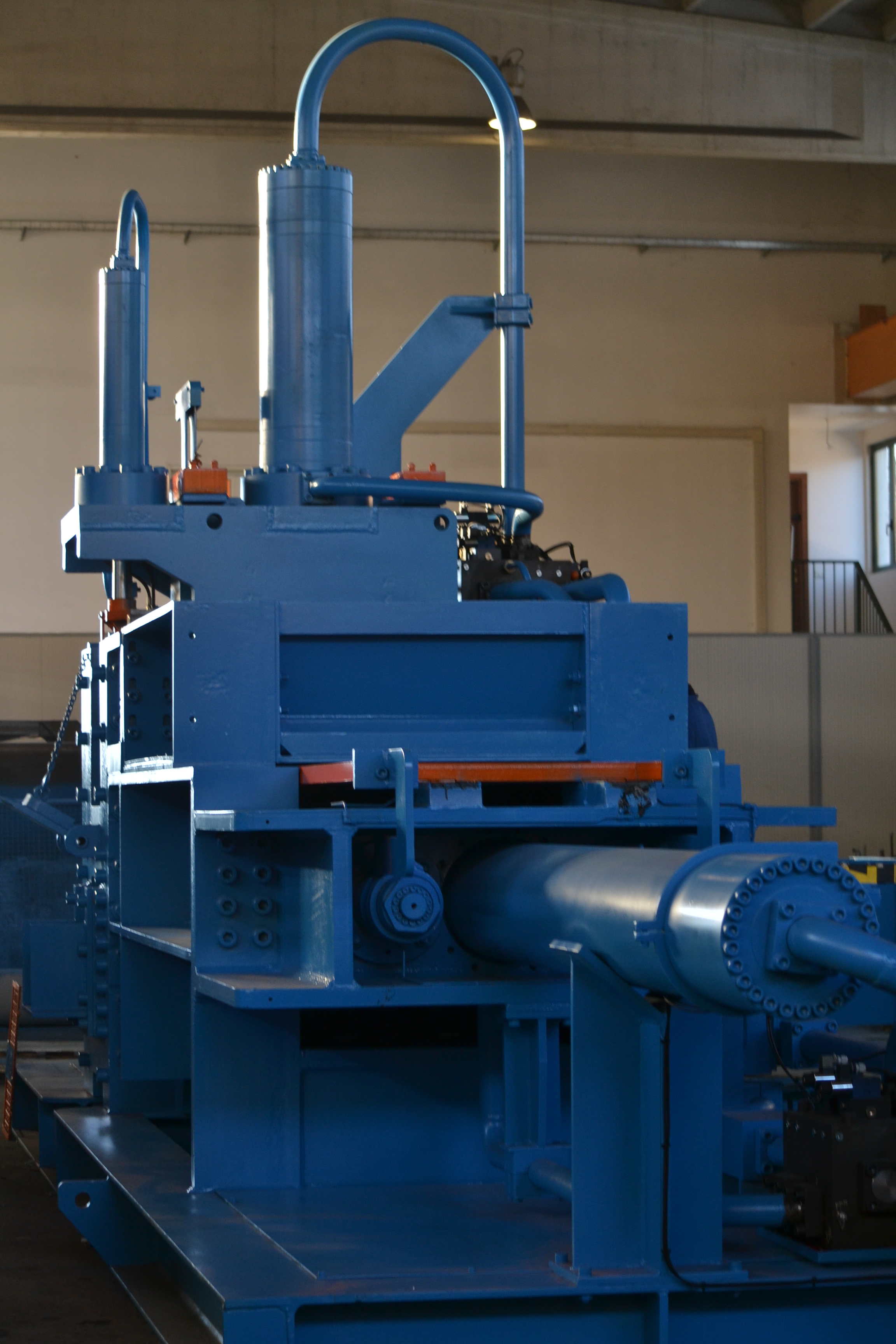

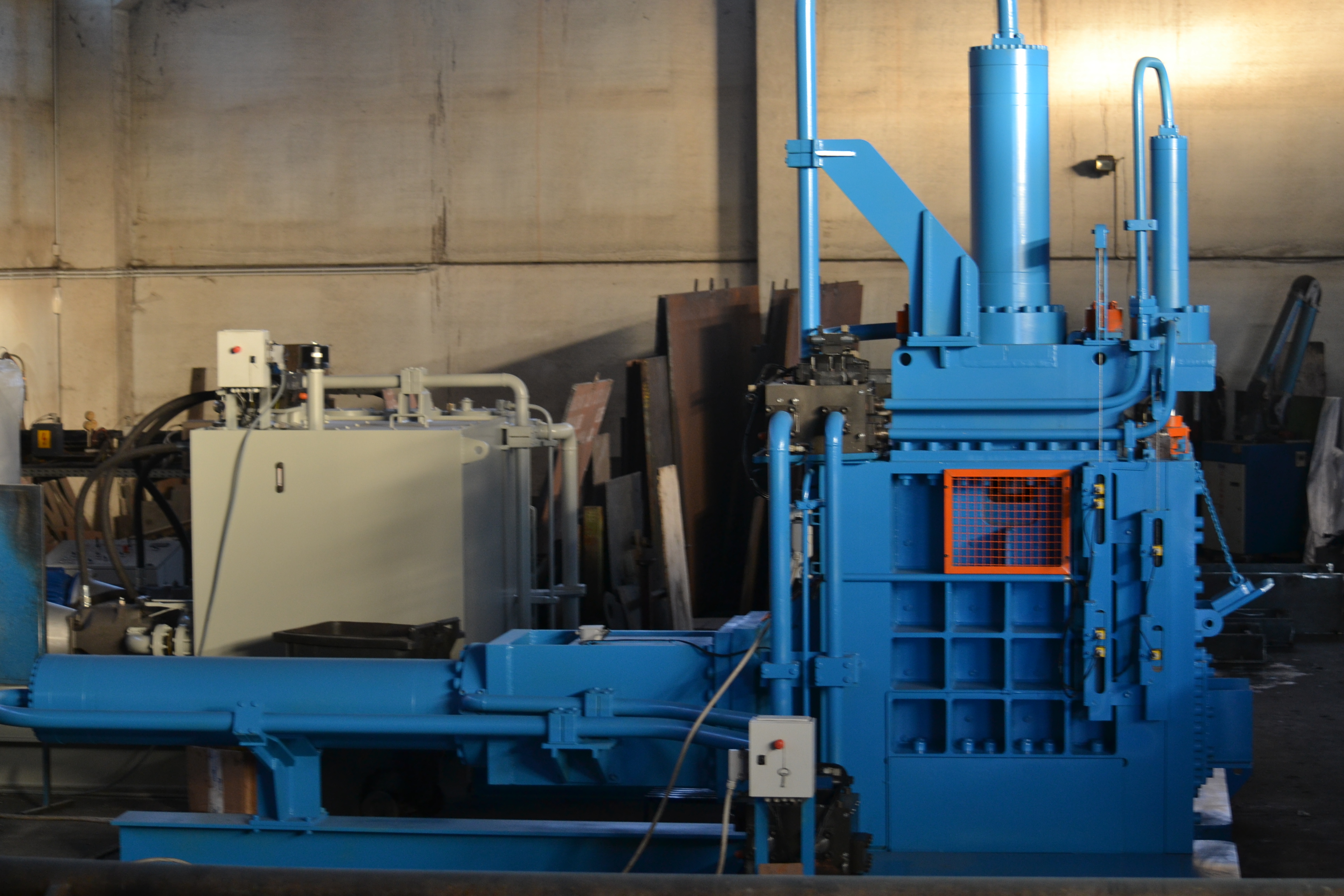

R.I.M.I. BALER P 30/30

The R.I.M.I. balers of the P 30/30 series belong to our small and medium sized automatic balers line, used for the compression of: metal scrap, tinplate, cans, iron sheet - within certain limits of length and thickness.

They are made up of two main bearing frames, the head unit and the power supply unit.

The box is mechanically machined and equipped with interchangeable corrugated sheets both at the bottom and on the sides, where the longitudinal, vertical and transversal pushers run.

During the first compression, shearing blades cut the material protruding from the box and prepare it for the next automatic cycle.

The ejection door allows the automatic discharge of the bundle; it slides along its interchangeable structural guides.

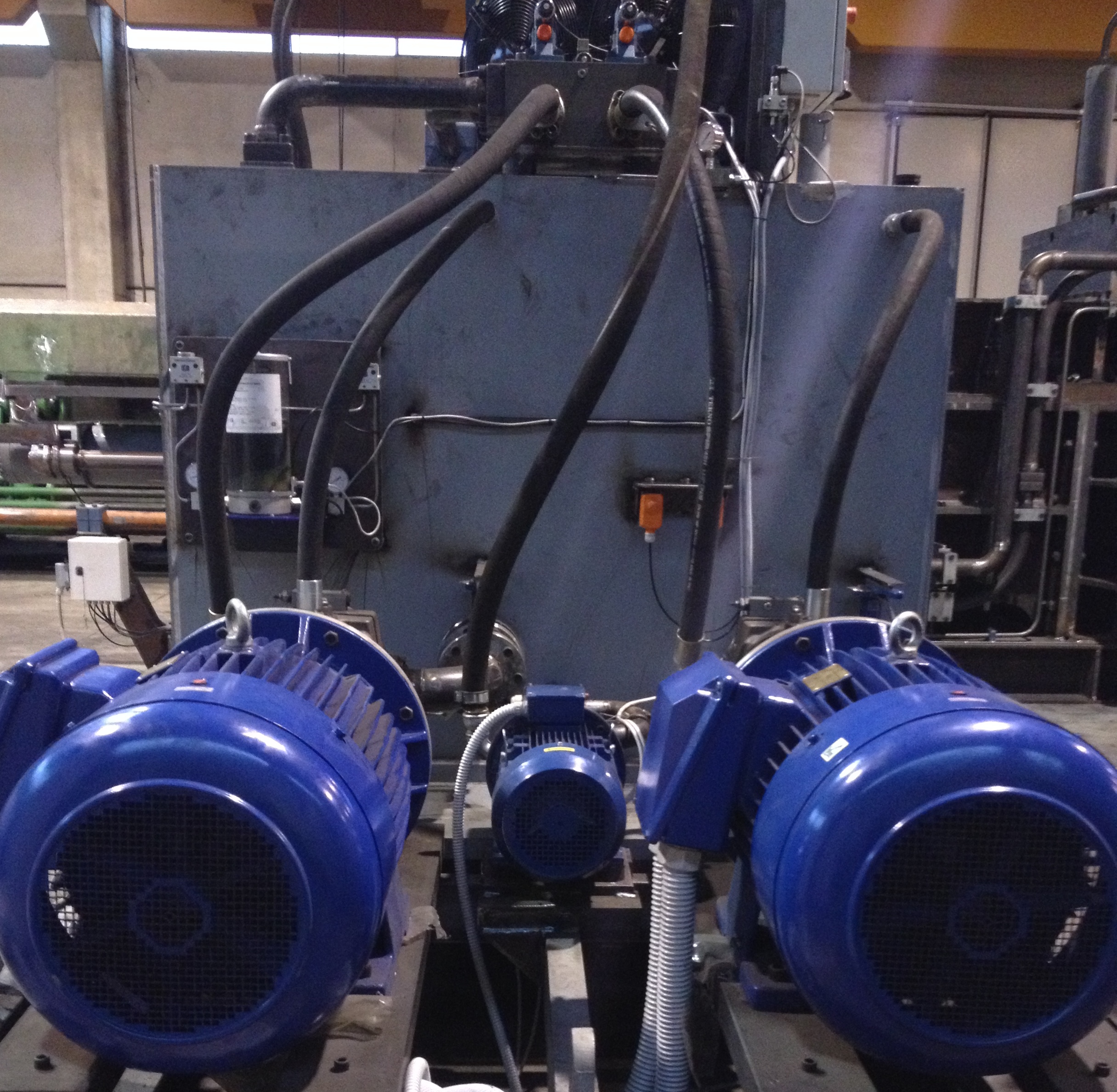

The hydraulic system is made up of a medium-sized tank and forged distributors, coated with phosphate, where logic and proportional valves are fitted, and of the motor-pump groups, developing its high production speed.

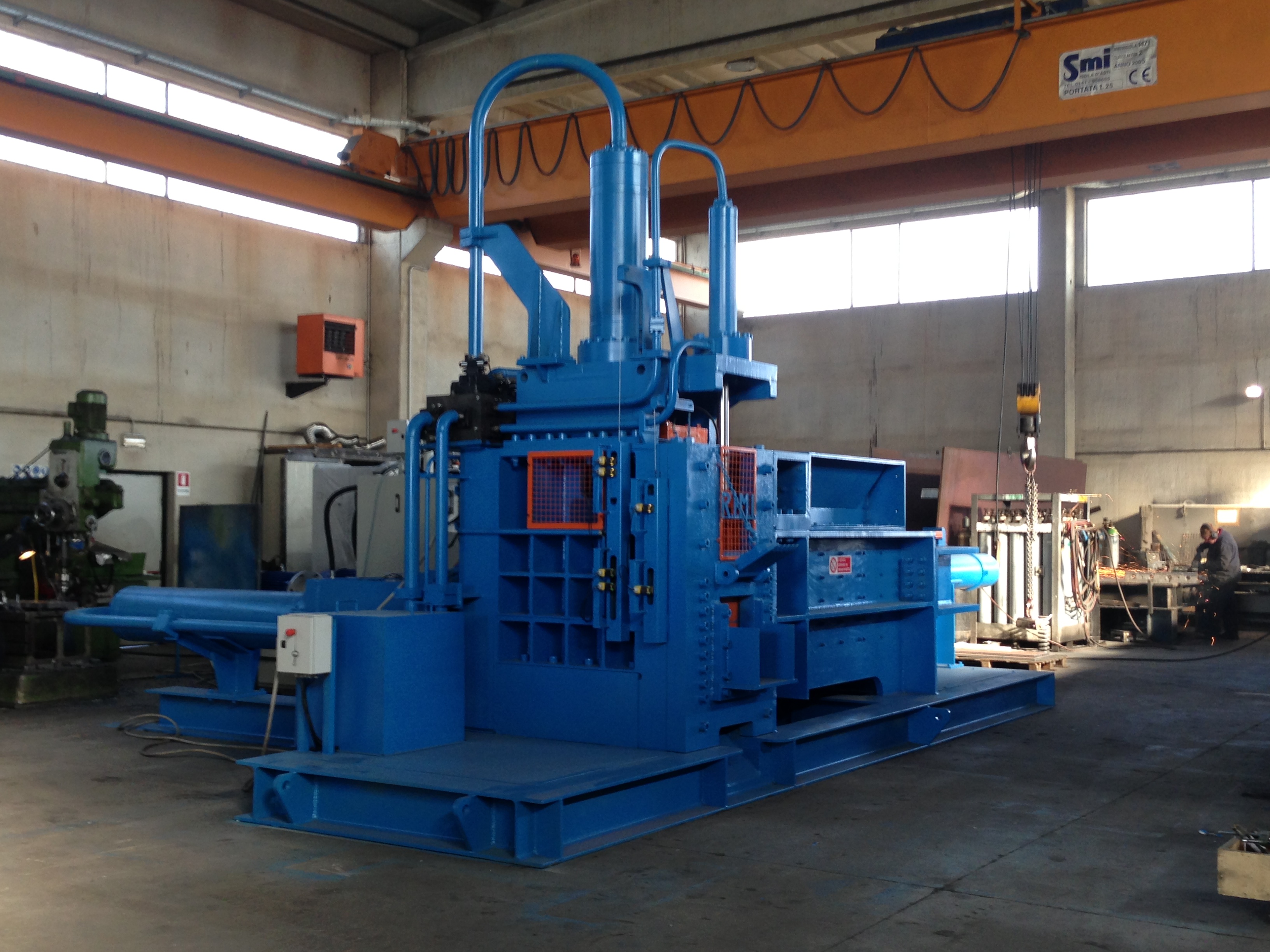

This type of press can be installed on a sturdy metal frame to avoid anchoring the machine to the ground, and therefore prevent expensive foundation works.

TECHNICAL SPECIFICATIONS
Charging hopperDimensions
lenghtmm. 1500
widthmm. 1000
heightmm. 350
Compression chamberDimensions
lenghtmm. 2350
widthmm. 1000
heightmm. 800
BaleDimensions
lenghtVar
widthmm. 300
heightmm. 300
Average weightkg. 80/100
Average densitykg/dmĀ³ 2.5-3
Cylinder thrust
Horizontalton. 130
Verticalton. 160
Transversalton. 230
Installed power
main motorsKW 150
Cooling unitsCV 1,5
Motors voltageVolt 380
Aux. controls voltageVolt 110/24
Frequencyhz 50
Hourly productionbales / hour 100-120
Operating pressurebar 280-300
